MILVUS 10
The Milvus 10 is a compact, gyrostabilized turret with a 10 cm diameter, weighing approximately 650 grams. It features a Full HD day camera with 10× optical zoom and a 640×480 LWIR infrared camera with 3× optical zoom.
MILVUS 25

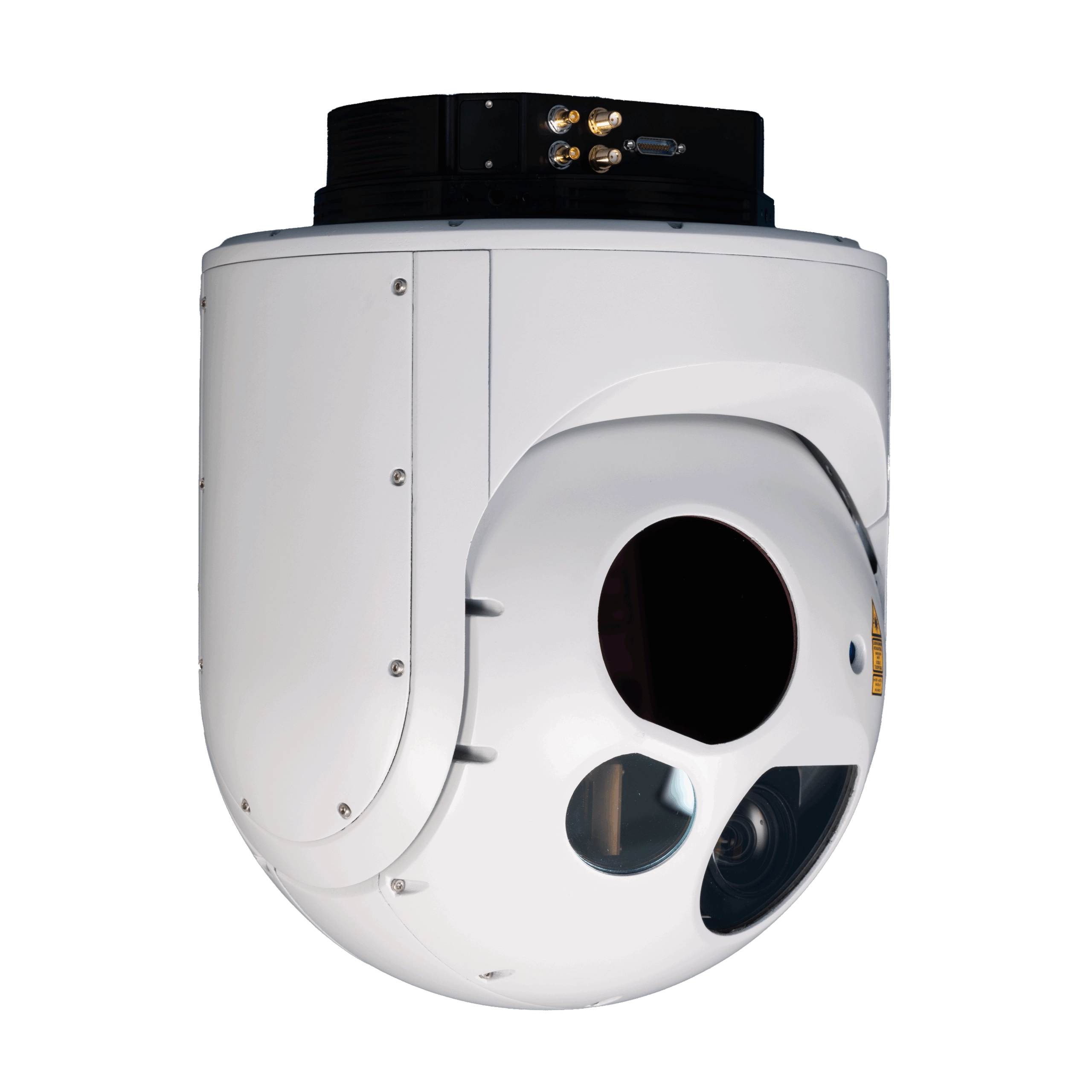

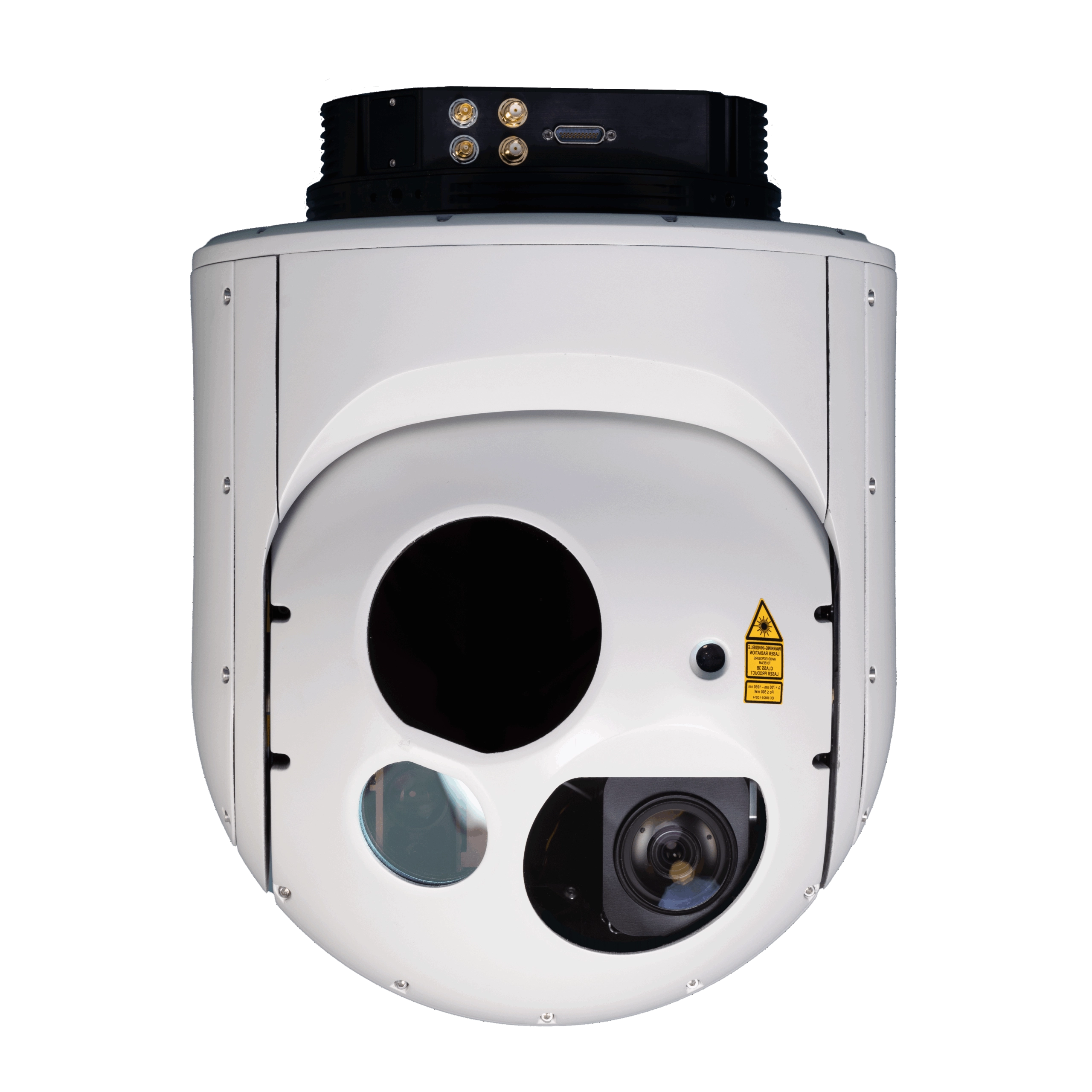

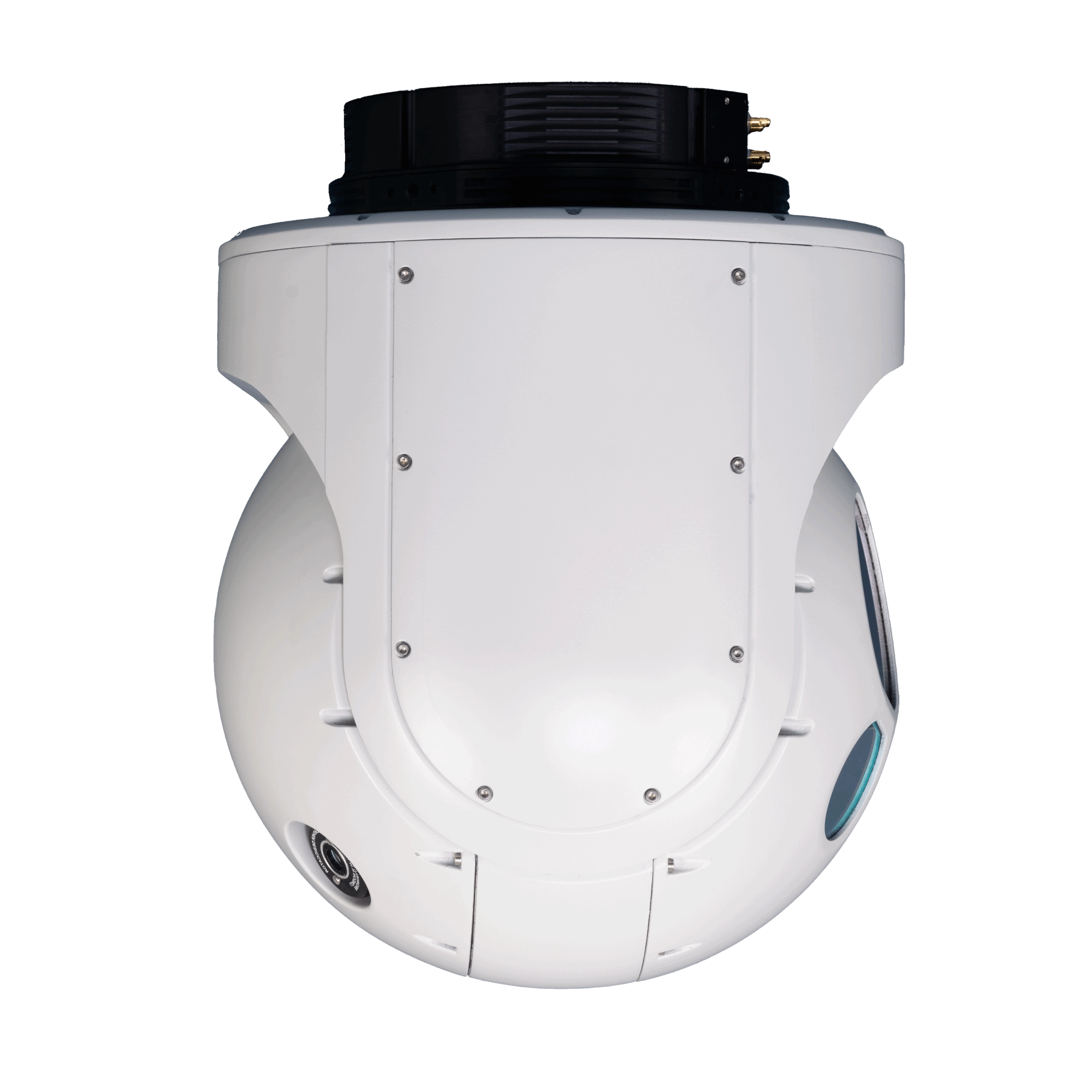

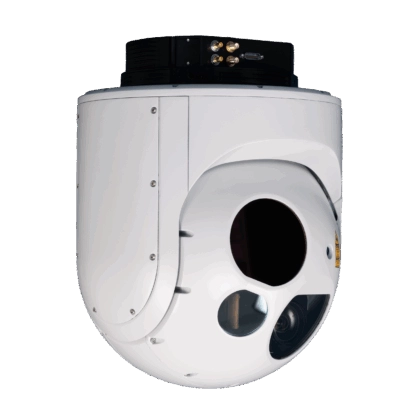

The Milvus 25 provides a high-performance solution for aerial platforms. This gimbal comes in four models: the Milvus 25S, the Milvus 25HP, the Milvus 25HQ, and the Milvus 25D, each offering different levels of optronic performance, with the Milvus 25D featuring a laser designation function.
Want to know more?
MILVUS 25S
The Milvus 25S is a 5.5 kg gimbal. It features a Full HD day camera with x30 optical zoom and a cooled MWIR VGA 640×512 infrared camera with x15 optical zoom. It is also equipped with a laser rangefinder (LRF) and a laser pointer (LP), making it an effective solution for observation and tactical designation missions.
Les caractéristiques- EO: Full HD (1920×1080) with x30 optical zoom
- MWIR: Cooled VGA (640×512) with x15 optical zoom
- LRF: 15 km range
- LP: 830 nm
- Daytime vehicle detection: 20 km
MILVUS 25HP
The Milvus 25HP retains the 25 cm format, with a weight of 6.3 kg. It stands out with a Full HD day camera featuring x55 optical zoom, delivering exceptional magnification capability. Its infrared camera is also enhanced with a 640×512 MWIR sensor equipped with x25 optical zoom. The integration of both a laser rangefinder (LRF) and a laser pointer (LP) makes it a powerful tool for long-range surveillance.
Les caractéristiques- EO: Full HD (1920×1080) with x55 optical zoom
- MWIR: Cooled VGA (640×512) with x25 optical zoom
- LRF: 15 km range
- LP: 830 nm
- Daytime vehicle detection: 35 km
MILVUS 25HD
The Milvus 25HD weighs 6.5 kg. It combines a Full HD day camera with x55 optical zoom and a high-definition 1280×1024 MWIR infrared camera with x20 optical zoom. Like the other models in the range, it integrates both a laser rangefinder (LRF) and a laser pointer (LP), but its superior IR resolution makes it a premium solution for demanding missions.
Les caractéristiques- EO: Full HD (1920×1080) with x55 optical zoom
- MWIR: Cooled SXGA (1280×1024) with x20 optical zoom
- LRF: 15 km range
- LP: 830 nm
- Daytime vehicle detection: 35 km
MILVUS 25D
The Milvus 25D is a gimbal with a 25 cm diameter and a weight of 7 kg. It features a Full HD day camera with x30 optical zoom and a 640×480 MWIR infrared camera with x15 optical zoom. In addition, it integrates a laser rangefinder, a laser pointer, and a >50 mJ STANAG 3733-compliant laser designator. Robust and versatile, it is suited for medium- and long-range surveillance and designation missions.
Les caractéristiques- EO: Full HD (1920×1080) with x30 optical zoom
- MWIR: Cooled VGA (640×512) with x15 optical zoom
- LRF: 15 km range
- LP: 830 nm
- Daytime vehicle detection: 20 km
- LTD : >50mJ STANAG 3733
