2,5kg Aerial EO IR LRF LP LTD DRI 24km

MILVUS 16

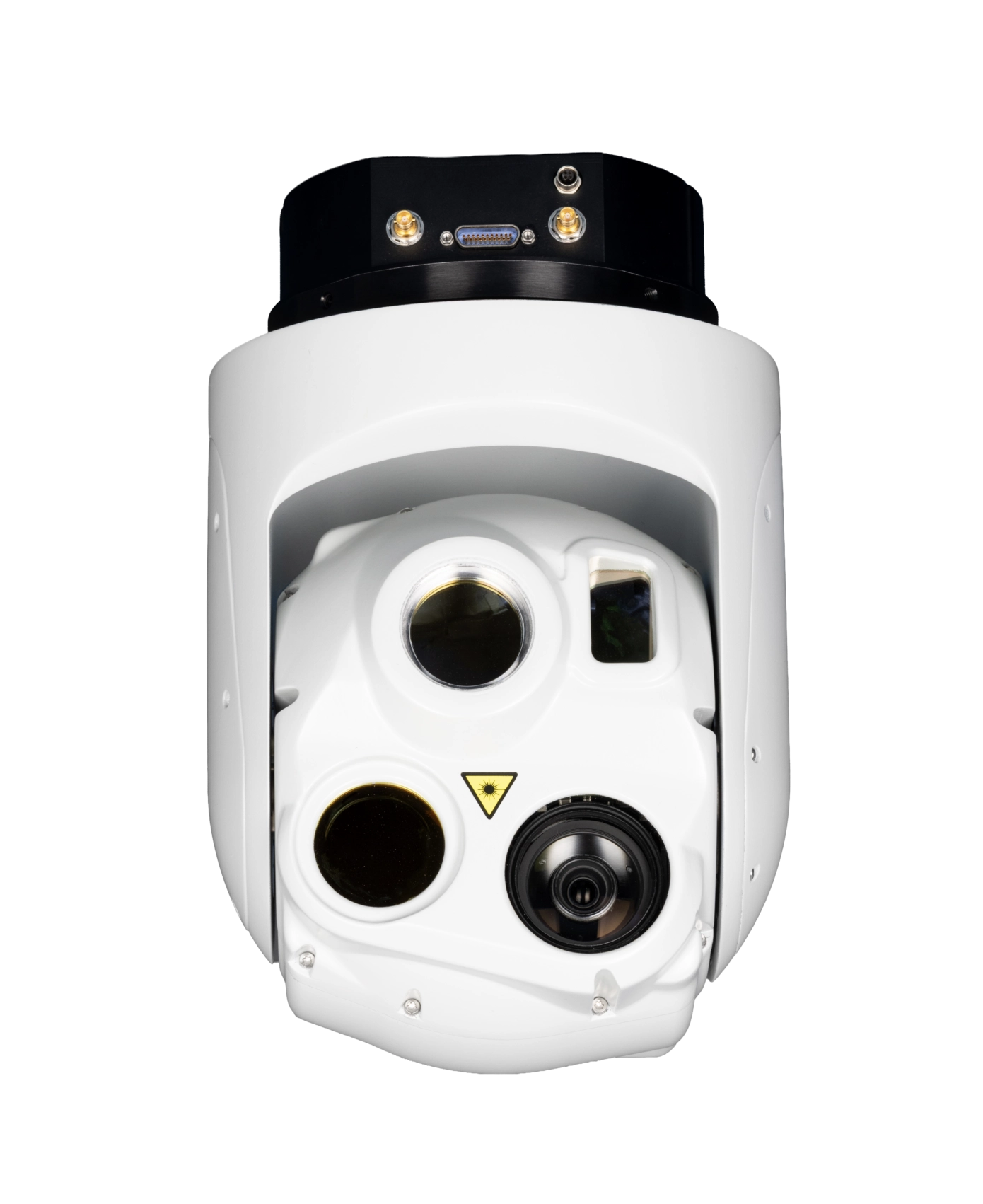

The Milvus 16 delivers a high-performance day-and-night solution for airborne platforms. This gyro-stabilized turret is available in two models: the Milvus 16MW, equipped with a cooled MWIR thermal camera, and the Milvus 16D, featuring a laser designation function.

Les caractéristiques

Zoom optique EO Full HD x30 (option x36)
Zoom optique IR MWIR VGA x15
LRF (12km)
Pointeur laser (850nm)
Véhicule de jour DRI : 24/11,5/5 km
Véhicule de nuit DRI : 16,4/7,3/4,1 km

Tourelle gyrostabilisée aérienne - Aerial gyrostabilized gimbal

2,8kg aerial EO IR LRF Laser DRI 24km

MILVUS 16MW

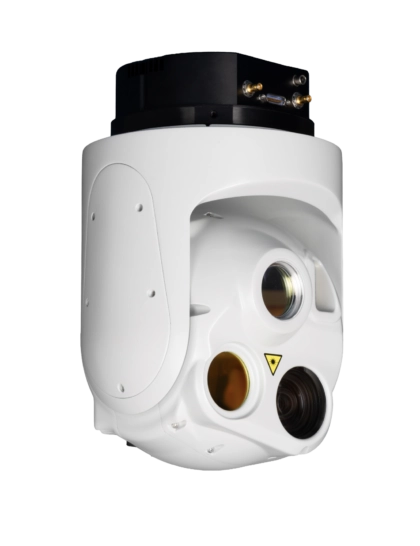

The Milvus 16MW has a compact architecture (Ø16 cm) but stands out with enhanced performance. It includes a Full HD day camera with x30 (or x36 option) optical zoom and a cooled MWIR 640×480 infrared camera with x15 optical zoom. This gimbal also integrates a 12 km laser rangefinder and a laser pointer, all within a weight of 2.8 kg.

Les caractéristiques

EO : Full HD (1920x1080) with x30 optical zoom (x36 optional)
MWIR: Cooled VGA (640×512) with x15 optical zoom
LRF: 12 km range
LP: 850 nm
Daytime vehicle detection: 24 km

See the product

2,5kg Aerial EO IRHD LRF Laser DRI 20km

MILVUS 16D

The Milvus 16D is a compact gimbal with a diameter of 16 cm and a weight of around 2 kg. It features a Full HD day camera with x30 optical zoom and a 1280×1024 HD LWIR infrared camera. It also integrates a STANAG 3733-compliant laser designator with >50 mJ output power, as well as a laser rangefinder with a 12 km range.

Les caractéristiques

EO: Full HD (1920×1080) with x30 optical zoom
LWIR: SXGA (1280×1024)
LRF: 12 km
LTD: >50 mJ, STANAG 3733-compliant
Daytime vehicle detection: 20 km

See the product

Want to know more?

The other gimbals in the MILVUS range

5,5kg Aerial EO MWIR LRF LP LTD DRI 35km MILVUS 25

The Milvus 25 provides a high-performance solution for aerial platforms. This gimbal comes in four models: the Milvus 25S, the Milvus 25HP, the Milvus 25HD, and the Milvus 25D, each offering different levels of optronic performance, with the Milvus 25D featuring a laser designation function.

See the product

245gr aerial EO IR DRI 10km MILVUS 7

This new turret offers a high-performance solution for aerial platforms. The Milvus 7 is the most compact in the range, with a diameter of only 7 cm and an ultra-lightweight design of just 245 grams. It features a Full HD day camera with x160 zoom (x10 optical and x16 digital) and a 640×480 LWIR infrared camera.

See the product

2,0kg Aérien EO IR LRF LP DRI 20km MILVUS 14

The Milvus 14 is a gimbal with a 14 cm diameter and a weight of 2 kg. It features a Full HD day camera with x30 optical zoom and a 640×480 LWIR infrared camera with x5 optical zoom. It also integrates a laser rangefinder (LRF) and a laser pointer (LP), making it a complete solution for missions requiring both detection and designation.

See the product
